Deekax Talteri DIVK-C 99 CD and -C 99 CDRH
Talteri ventilation system
- demand controlled ventilation
- heat recovery from extract air with the counter flow exchanger
- heat recovery efficiency over 80%
- direct current fans(EC)
- demand controlled supply air filtration and heating
- speed control with an EC cooker hood or an AHU touch screen control panel, must be ordered separately
- summer bypass damper
- CDRH model with integrated humidity transmitter
- separate junction box for the external control
- the unit is equipped with noise insulated, white powder coated casing
- the unit's ceiling mounting plate or wall mounting kit must be ordered separately
- electrical postheating and preheating
- Duct outlets 125 tai 160 mm
- Max. air flows C 99-125 supply/extract 98/106 l/s 100 Pa
- Max. air flows C 99-160 supply/extract 111/124 l/s 100 Pa

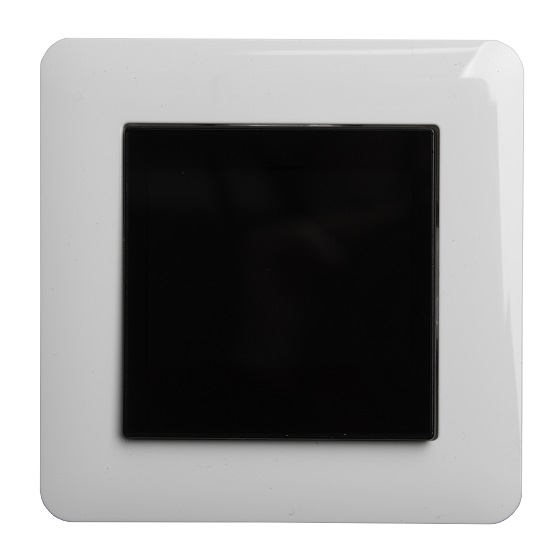

Versatile touch screen functions
- fan speed adjustment
- supply air temperature adjustment
- fireplace switch
- boosting with timer
- out of home switch
- week clock control
- service interval reminder
- languages finnish, swedish,english and estonian
Stanby
- carbon dioxide transmitter
- humidity transmitter
- separate extended period or fireplace switch
- separate boost switch
- out of home switch
- remote monitoring control
- 0-10V ulkoinen ohjaus
- Modbus
Dimensions: Height 498 mm, Width 592 mm,
Depth 578 mm, Weight 60 kg
Annual efficiency calculator DIVK-C 99 CD-125
Annual efficiency calculator DIVK-C 99 CD-160
